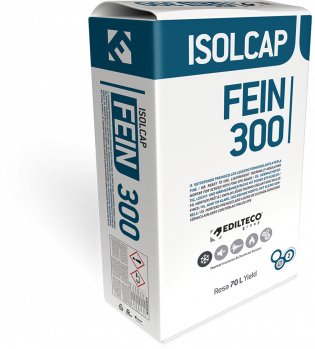

ISOLCAP FEIN 300
PRE-MIXED, LIGHTWEIGHT AND THERMAL INSULATING SUBFLOOR. 300 kg/m3
ISOLCAP FEIN 300 is the pre-mixed lightweight insulating subfloor that also works as a screed: at 300 kg/m3 it creates a single-layer screed on which ceramic tiles, stoneware, terracotta or parquet can be glued directly, avoiding a separate subfloor plus screed. You save time, thickness and weight.
Made with EPS beads coated with E.I.A. additive, it combines thermal insulation (λD 0.078 W/mK) with good strength (1.61 N/mm2 in compression). It does not settle, does not shrink and does not crack, and it is also suitable as a base for roof waterproofing.
With very little mixing water it dries quickly: at 5 cm thickness ceramic tiles can be laid after about 96 hours and floating parquet after about 7 days. After 28 days the residual moisture is below 2%, a decisive advantage in timber-frame buildings.
It is mixed with a drill and whisk, a cement mixer or a mixer, and pumped to the floor with POLITERM® MACHINE, ISOLCAP MACHINE, a properly fitted plastering machine or a truck mixer and concrete pump. Combined with DBRED FONOTECH 5 it contributes to impact sound insulation (ΔLw 26 dB with 7 cm). Reaction to fire A2-s1,d0.
NOTE
- Zero hygrometric shrinkage
- Zero seepage
- Dimensionally stable
- Ultra-low residual moisture
- No cracking
- RAL certified
- Suitable for single-layer screeds with directly glued floor coverings
- Dry density 300 kg/m3.
- Thermal conductivity λD 0.078 W/mK (UNI EN 12667).
- Compressive strength 1.61 N/mm2; flexural strength 0.95 N/mm2 (UNI EN 1015-11).
- μ 7.2 (UNI EN ISO 12572).
- ΔLw 26 dB (7 cm + DBRED FONOTECH 5, laboratory).
- Reaction to fire A2-s1,d0; rot-proof.
- Residual moisture after 28 days < 2% by volume.
- Laying at 5 cm (+20 °C, RH 50%): ceramic/stoneware/clinker after about 96 h, floating parquet after about 7 days.
- Mixing water 10-11 L per bag.
- Yield 13-14 bags per m3; 70 L bag; pallet of 44 bags (3.1-3.4 m3).
- Minimum thickness 5 cm, including the space above any services.
PACKAGING
- Single-layer lightweight screeds for floor coverings laid with adhesive (ceramic, porcelain stoneware, clinker, terracotta, parquet). For glued parquet, a KRONOS AUTOLIV skim coat (min. 5 mm) is mandatory.
- Lightweight thermal insulating subfloors, with or without falls.
- Lightening and filling layers.
- Roof insulation (pitched or flat), suitable for direct laying of waterproofing membranes or solvent-free liquid membranes.
- Not suitable for direct laying of resilient floor coverings.
