CERTIFICATIONS

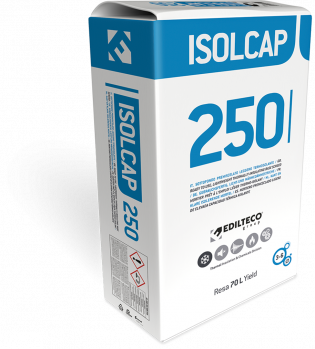

ISOLCAP 250

PRE-MIXED, LIGHTWEIGHT AND THERMAL INSULATING SUBFLOOR. 250 kg/m3

ISOLCAP 250 is the pre-mixed lightweight thermal insulating subfloor that combines good insulation (λD 0.065 W/mK) with a density of just 250 kg/m³. It levels floors and covers pipes and services while adding very little load to the structure.

It is made with hydraulic binders and EPS beads coated with E.I.A. additive, which keep the beads evenly distributed in the mix and make it easy to pump. It does not settle, does not shrink and does not crack, and it is also suitable as a base for waterproofing membranes on roofs.

It needs only 6-8 L of water per bag, so after 28 days the residual moisture is below 2%: a key advantage in timber-frame buildings. It is mixed with a drill and whisk, a cement mixer or a mixer, and pumped to the floor with POLITERM® MACHINE, ISOLCAP MACHINE, a properly fitted plastering machine or a truck mixer and concrete pump.

Reaction to fire A2-s1,d0. With 5 cm of ISOLCAP 250 under a 5 cm screed it contributes to impact sound reduction (ΔLw 14 dB).

NOTE

Zero hygrometric shrinkage
Zero seepage
Dimensionally stable
Ultra-low residual moisture
No cracking
RAL certified

Dry density 250 kg/m³.
Thermal conductivity λD 0.065 W/mK (UNI EN 12667).
Compressive strength 0.83 N/mm² (UNI 6132); flexural strength 0.46 N/mm² (UNI EN 13892-2).
μ 6.9 (UNI EN ISO 12572).
ΔLw 14 dB (5 cm of ISOLCAP 250 + 5 cm screed, laboratory).
Reaction to fire A2-s1,d0; rot-proof.
Residual moisture after 28 days < 2% by volume (5 cm, absorbent substrate).
Mixing water 6-8 L per bag.
Yield 13-14 bags per m³ (about 1 m² at 7 cm per bag).
70 L bag; pallet of 44 bags (3.1-3.4 m³).
Minimum thickness on absorbent substrates 5 cm.

PACKAGING

Lightweight thermal insulating subfloors, with or without falls.
Lightening and filling layers.
Roof insulation (pitched or flat), suitable for direct laying of waterproofing membranes.
