POLITERM® R

SUPERLIGHT THERMAL INSULATING REGRANULATED AGGREGATE WITH ADDITIVES

POLITERM® R is the ultra-lightweight aggregate of the EDILTECO GREEN line for lightweight thermal insulating subfloors that reuse material: it is made of regranulated EPS beads. Same performance as a POLITERM® subfloor, with a lower environmental impact.

The beads, coated with E.I.A. additive, mix perfectly with cement and water, do not float and spread evenly. Densities from 150 to 1800 kg/m³, with λD from 0.049 W/mK and strengths up to 25 N/mm².

It needs very little mixing water and dries quickly (about 1 day per cm). It is mixed in a cement mixer or mixer and pumped with POLITERM® MACHINE, ISOLCAP MACHINE or screed pumps; it can also be mixed and pumped with a truck mixer. Reaction to fire A2-s1,d0. Also available as POLITERM® R Ready Mix, specifically for concrete batching plants.

NOTE

Virgin regranulated EPS beads Ø 2-6 mm, low water absorption, coated with E.I.A. additive.
λD (W/mK): 0.0489 (formula 150) · 0.065 (250) · 0.079 (300) · 0.104 (500) · 0.176 (800) · 0.191 (1000).
Compressive strength: 0.59 N/mm² (150) · 0.83 (250) · 1.61 (300) · 2.24 (500) · ≥ 5 (800) · ≥ 12 (1200) · ≥ 25 N/mm² (1800).
μ 5.9-14.0; specific heat 1.0 kJ/kgK.
ΔLw 14 dB (5 cm formula 250 + 5 cm screed) · 26 dB (7 cm formula 300 + DBRED FONOTECH 5); L'nT,w 61 dB (formula 250, 11 cm).
Reaction to fire A2-s1,d0; rot-proof.
Cement: Portland 32.5 CEM I or CEM II limestone. Application +5 to +35 °C (liquid antifreeze admixture allowed below +5 °C).
Minimum thickness on absorbent substrates 5 cm.

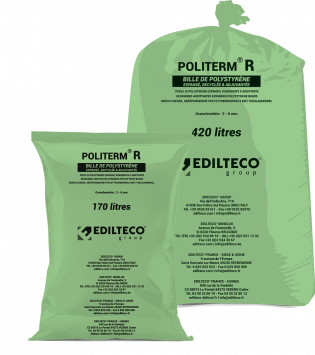

Yield: 2 bags of 420 L or 5 bags of 170 L per 1 m³ (up to 350 kg/m³).

PACKAGING

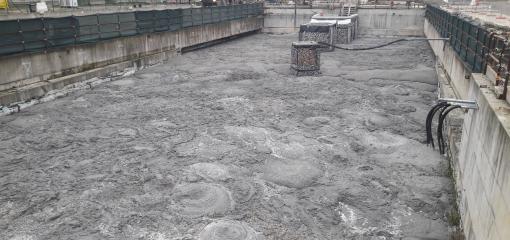

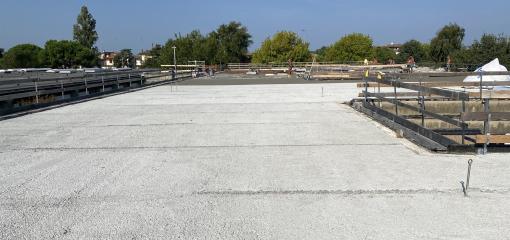

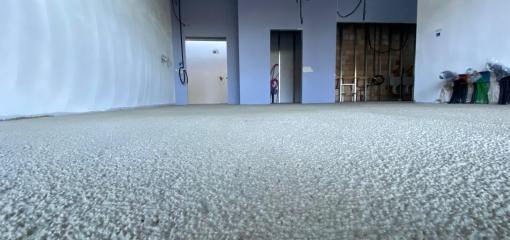

Subfloors on ground and pilotis floors, between floors, on roofs and on timber floors.
Insulation of non-walkable attics.
Vault infill, even at very high thicknesses.
Fill beneath trafficable asphalt pavements.
Subfloors for industrial flooring.
