POLITERM® MACHINE 1000 H2O

MIXER/PUMP FOR LIGHTWEIGHT CONCRETE

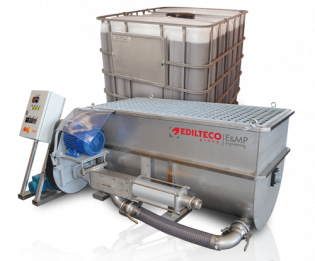

POLITERM® MACHINE 1000 H2O is a mixer/pump in stainless steel for preparing and pumping lightweight concretes made with virgin or recycled EPS beads (POLITERM® BLU), perlite, vermiculite and cork, also mixed with cellular foam. It mixes and pumps on site in a single machine, so lightweight screeds and subfloors are laid quickly and evenly, even on upper floors.

The 1000 L tank with double cross-flow auger and the 500 L/min pump reach 100 m of hose and 30 m of height. The H2O version adds a separate 1000 L water reserve tank and a digital dosing device that feeds the exact mixing water straight into the tank: constant mixes, batch after batch.

NOTE

Mixing tank: 1000 L; motor 3.0 kW - 400 V - 50 Hz; double cross-flow mixing auger.
Pump motor: 5.5 kW - 400 V - 50 Hz; friction belt drive; flow 500 L of water/min.
Maximum hose length: 100 m; maximum pumping height: 30 m.
Weight: 700 kg; dimensions 210 × 130 cm, loading height 100 cm; crane hooks and forklift slots.
Standard equipment: 2 high-resistance hoses + 2 light hoses (20 m each set), 25 m water hose, 25 m power cable 3P+E 32 A, parallel remote pump control, 2 de-airing tools.
Supplied with installation, use and maintenance manual and CE declaration of conformity; with a generator, consult the Edilteco Technical Department.

PACKAGING

Mixing and pumping of POLITERM® BLU and lightweight concretes with EPS, perlite, vermiculite and cork.
Lightweight insulating subfloors and screeds in new buildings and renovations.
Optional: metallic tubes and bends (for pumping above 10 m), POLITERM® MACHINE SCREW for cement loading.
