POLITERM® MOBILE EQUIPMENT PME

SYSTEM FOR POLITERM® BLU APPLICATION

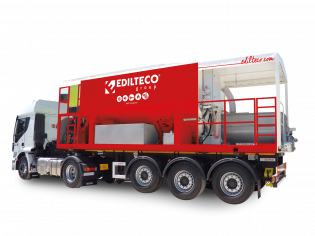

POLITERM® MOBILE EQUIPMENT PME is a mobile plant for the automatic production and pumping of POLITERM® BLU and quality-controlled lightweight insulating screeds and subfloors. Mounted on a 4-axle truck or semi-trailer with Twist Lock fixings, it arrives on site with cement silo, water, generator and pump on board.

A touch-screen control panel doses and weighs up to five components automatically and documents every production stage. It produces foamed cellular concrete and lightweight concrete made exclusively with lightweight aggregates (virgin or recycled EPS, vermiculite, perlite, cork) and pumps it up to 150 m away and 50 m high – large jobs with consistent, traceable quality and quick set-up and cleaning.

NOTE

Dimensions L × W × H: 8 × 2.5 × 2.63 m; weight 7000 kg.
Cement silo 19 m³ with 4" pneumatic loading sleeves; cement screw conveyors.
Stainless steel water tank 1800 L; water pump 200 L/min; additive pump 30 L/min.
Mixer 1000 L on load cells with double cross-flow auger.
Screw conveyor pump 520 L/min; electric compressor 670 L/min; foam lance.
Conveying distance 150 m; conveying height 50 m.
Silent 30 kVA generator on board (site power can also be used).
Hydraulic power unit, touch-screen control panel, electric hose reel with 60 m spiral hose, service pressure washer, remote radio control.
Optional automatic sand dosing.

PACKAGING

Large-scale production of POLITERM® BLU lightweight insulating screeds and subfloors.
Foamed cellular concrete and lightweight concretes with EPS, vermiculite, perlite, cork.
Sites without power supply, thanks to the on-board generator.
