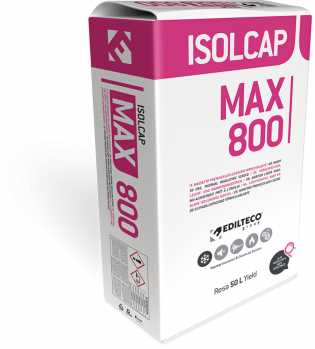

ISOLCAP MAX 800
PRE-MIXED, CE CERTIFIED, LIGHTWEIGHT AND THERMAL INSULATING SCREED. 800 kg/m3
ISOLCAP MAX 800 is the CE-certified lightweight insulating screed of the ISOLCAP range: at 800 kg/m3 it guarantees a compressive strength of at least 5 N/mm2 (class C5-F1 to UNI EN 13813) and replaces a traditional screed with a lighter and more insulating product. It is ideal as a single-layer screed under glued floors and wherever certified mechanical performance is required.
Made with EPS beads coated with E.I.A. additive and selected aggregates, it keeps a thermal conductivity of λD 0.176 W/mK. It does not settle, does not shrink and does not crack.
At 5 cm thickness ceramic tiles can be laid after about 6 days and floating parquet after about 12 days. It can also be used as a 3 cm fill layer under KRONOS or self-levelling screeds.
It is mixed with a drill and whisk, a cement mixer or a mixer, and pumped to the floor with POLITERM® MACHINE, ISOLCAP MACHINE, a properly fitted plastering machine or a truck mixer and concrete pump. With DBRED FONOTECH 5: ΔLw 19 dB. Reaction to fire A2-s1,d0.
NOTE
- Zero hygrometric shrinkage
- Zero seepage
- Dimensionally stable
- No cracking
- RAL certified
- CE certified
- Dry density 800 kg/m3.
- Thermal conductivity λD 0.176 W/mK (UNI EN 12667).
- Compressive strength ≥ 5.0 N/mm2 (C5); flexural strength ≥ 1.0 N/mm2 (F1) – UNI EN 13813.
- μ 14.0.
- ΔLw 19 dB (5 cm + DBRED FONOTECH 5, calculated).
- Reaction to fire A2-s1,d0; rot-proof.
- Laying at 5 cm: ceramic after about 6 days, floating parquet after about 12 days.
- Mixing water 8-9 L per bag.
- Yield 19-20 bags per m3 (about 1 m2 at 5 cm per bag); 50 L bag; pallet of 40 bags (about 2.0 m3).
- Minimum thickness 5 cm.
PACKAGING
- Single-layer lightweight screeds for floor coverings laid with adhesive (for glued parquet, a KRONOS AUTOLIV skim coat is mandatory).
- Lightweight thermal insulating levelling screeds.
- 3 cm fill layers under KRONOS or self-levelling screeds.
- Roof insulation, suitable for direct laying of waterproofing membranes.
- Not suitable for direct laying of resilient floor coverings.
