DBRED F

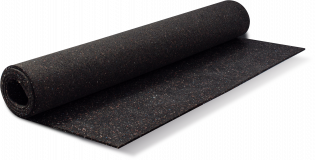

ROLLED UNDERLAY FOR IMPACT SOUND INSULATION

DBRED F is a rolled underlay in SBR rubber bound with MDI polyurethane resin, for impact sound insulation. Rubber is elastic, durable and does not lose its performance over time, even under the load of the screed.

Four thicknesses – F3, F5, F8 and F10 – cover different uses: under floating screeds, under floating floors combined with dBred felts, as a protection layer for waterproofing membranes and, in the F5, F8 and F10 versions, for direct gluing of tiles in the Piano Zero system, where thickness is limited.

NOTE

Durable SBR rubber
Four thicknesses for every build-up
Also for direct tile gluing (F5, F8, F10)

F3: rolls 120 × 1800 cm (21.6 m²), 9 rolls per pallet (194.4 m²); 780 kg/m³; 2.34 kg/m²; s' 78 MN/m³; tensile strength 0.40 N/mm².
F5: rolls 120 × 1500 cm (18 m²), 162 m² per pallet; 575 kg/m³; 2.87 kg/m²; s' 54 MN/m³; λD 0.076 W/mK.
F8: rolls 120 × 900 cm (10.8 m²), 97.2 m² per pallet; 4.60 kg/m²; s' 39 MN/m³; force reduction 33% (DIN 18032-2).
F10: rolls 120 × 750 cm (9 m²), 81 m² per pallet; 5.75 kg/m²; s' 37 MN/m³; force reduction 39%.
Black; service temperature -40 / +115 °C; reaction to fire E.

PACKAGING
