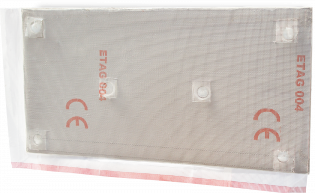

ECAP® NANO
PREFINISHED AEROGEL PANEL, FOR THERMAL INSULATION SYSTEMS
ECAP® NANO is the pre-finished aerogel insulation board for when space is very limited: with λD 0.015 W/mK it delivers maximum insulation in a minimum thickness (from 10 to 60 mm). It is ideal for window reveals, thermal bridges, internal insulation and historic buildings where every millimetre counts.
It is breathable (μ 5) and stable across a very wide temperature range, and like all ECAP® boards it is completed with ECAP® ADP and the ECAP® finishes.
NOTE
- Thermal conductivity λD 0.015 W/mK.
- Thermal resistance from 0.67 (10 mm) to 4.00 m2K/W (60 mm).
- μ 5; compressive strength 80 kPa; density 230 kg/m3.
- Reaction to fire C-s1,d0; service temperature −200 to +200 °C.
- Board 720 × 1400 mm.
PACKAGING

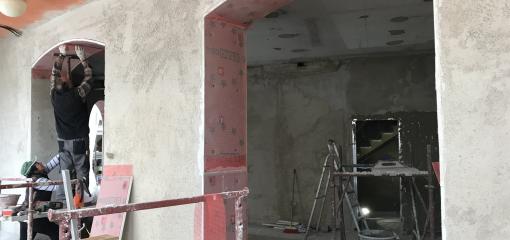

- Insulation where thickness is limited: reveals, thermal bridges, balconies.
- Internal insulation of walls and ceilings.
- Renovation of historic buildings.
