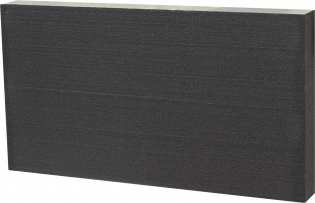

EDIL-THERM® GT
EPS PANEL, GRAPHITE-ENHANCED, FOR THERMAL INSULATION SYSTEMS
EDIL-THERM® GT is the graphite EPS board of the EDIL-THERM® system: the graphite lowers the thermal conductivity to λD 0.031 W/mK, so the same thickness insulates more, or the same performance is reached with a thinner wall build-up.
It is available in three classes – GT 100, GT 150 and GT 200 – with increasing compressive strength, to suit standard façades as well as areas exposed to higher mechanical stress. Thicknesses from 30 to 180 mm.
NOTE
- Graphite EPS; thermal conductivity λD 0.031 W/mK.
- Classes: GT 100, GT 150, GT 200 (increasing compressive strength).
- Thicknesses 30-180 mm.
- Contains recycled material.
PACKAGING
- External thermal insulation systems (ETICS) on façades.
- Internal insulation of walls.
- Correction of thermal bridges.
- Areas exposed to higher mechanical stress (GT 150, GT 200).
