GUM GUM MACHINE

MIXING AND PUMPING SYSTEM FOR THE APPLICATION OF RUBBER-BASED MATERIAL FOR ACOUSTIC INSULATION

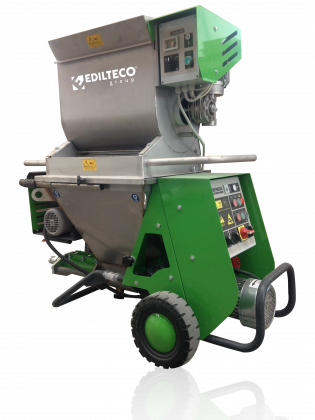

GUM GUM MACHINE is the mixing and spraying machine for GUM GUM SPRAY, the rubber-based compound that creates resilient impact sound layers on floors, stairs and walls. Simple, fast, clean and effective, it runs on a normal 220 V single-phase supply.

Light and easy to move on site, it mixes in its 50 L tank and sprays up to 40 m away and 15 m high at 35 bar. It can also spray lightweight plasters such as ISOLTECO® 150 and 230 and self-levelling mortars.

NOTE

Electric motors: sprayer 1.5 kW - 220 V; mixing tank 1.1 kW - 220 V - 50 Hz.
Flow rate 0.5-12 L/min*; max grain size 5 mm; max pressure 35 bar.
Stainless steel hoppers: sprayer 50 L; mixing tank 50 L effective (70 L nominal).
Spray distance 40 m*; spray height 15 m*; loading height 120 cm; outlet nozzle Ø 25 mm.
Dimensions 1200 × 600 × 1220 mm; weight 240 kg; compressor 210 L/min (optional).
* Values depend on mix, pump wear, hose diameter and length; maximum height and distance are not reached simultaneously.

PACKAGING

Spraying of GUM GUM SPRAY impact sound layers on floors, stairs and walls.
Spraying of lightweight plasters (ISOLTECO® 150, ISOLTECO® 230) and self-levelling mortars.
