DBRED W

SINGLE-LAYER SOUND-IMPEDANCE PANEL FOR WALL ACOUSTIC INSULATION

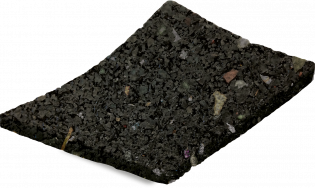

DBRED W is a single-layer sound-impedance panel for wall acoustic insulation, made of SBR rubber granules bound with MDI resin and polyurethane granules. Its high mass (740 kg/m³) and elasticity block airborne noise inside double walls and partitions.

Two thicknesses: W10 (10 mm, 7.4 kg/m²) and W20 (20 mm, 14.8 kg/m²), placed in the cavity of masonry walls or in timber roof build-ups. In laboratory, a double hollow-brick wall with W10 in double layer reaches Rw 64 dB.

NOTE

High-mass rubber panel
Rw up to 64 dB in a double wall
For walls and timber roofs

Panels 120 × 120 cm (1.44 m²): W10 10 mm, 80 pcs per pallet (115.2 m²); W20 20 mm, 40 pcs per pallet (57.6 m²).
Density 740 kg/m³; 7.4 / 14.8 kg/m²; s' 42 / 31 MN/m³; λD 0.121 W/mK.
Laboratory: Rw 64 dB (W10 double layer, 12 cm hollow brick); W20: 58 dB (aerated block 8+8), 56 dB (aerated concrete 10+8); W10: 53 dB (hollow brick 10+8).
On site: R'w 51 dB (cellular concrete 10 + 11.5), 54 dB (hollow brick 8+8); W20: R'w 55 dB (hollow brick 12+12).
Service temperature -40 / +115 °C; reaction to fire E.
